Sale Price : US$950.00 US$900.00
Color : Green
Lead Time : 2 Days
Details of Elevator Inverter PCB:

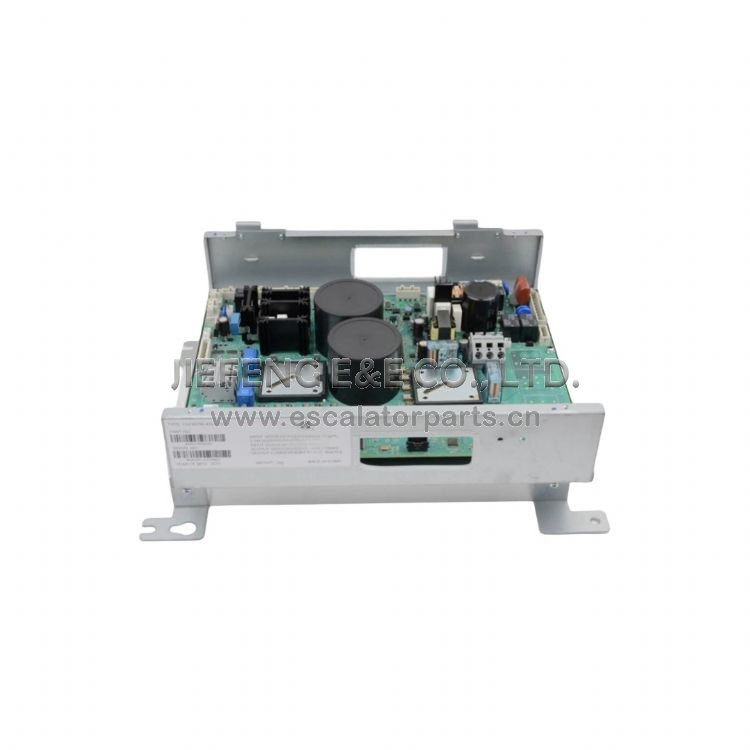

KEA21305ACB1 Elevator Frequency Converter OVFR03B-403（LRU）with Drive Board
Brand: JIEFENG PARTS
Warranty: 12 months
Type: 100% original new
To get better price pls inquiry us or email to firstname.lastname@example.org
We can supply all kinds of elevator and escalator inverter, our advantage as follows:
All of our Inverter are 100% original new
Professional on elevator and escalator Inverter, have own techincal team
Provide the full after-sales service
Adequate stocks and best delivery time
Guide of inquirePls provide the detail part number of elevator or escalator InverterAnd photos of product will be better, then we will check and quote youIn normal we will quote the price based on 100% original new
Sometimes we will quote replacement if you think the original price is high according to your needs.
Frequency inverter in construction elevator solutionConstruction elevator system Introduction
In the modern High-rise building construction, the construction elevator is the most important equipment which is used in big-scale tower crane.
Generally, the construction elevator can be divided into three kinds in speed, low-speed elevator in the speed range of 0~40m/min, medium-speed elevator in the speed range of 0~63m/min, high-speed elevator in the speed range of 0~96m/min.
The ordinary elevator is controlled by contactors, it has the disadvantage of:
(1) Single operation speed;
(2) Big surge current in start and stop;
(3) Heavy damage for structure and mechanism system;
(4) The electric components are easily damaged;
(5) Running speed is always low, in the range of 34~38m/min.
This low-end system will reduce the construction speed and also reduce the benefit of enterprises. If we only increase the operation speed, the concussion of structure and mechanism will be enlarged and increase the abrasion between gear rack and brake disc accordingly, it will reduce the reliability of operation.
As the layers increase, for the building which the height is more than 400m, the high speed elevator of 96m/min will be used to increase the construction efficiency, It need very big braking resistance to consume the regenerated energy while the elevator going down. It has big security risk and energy losing in the application of long-term braking (length of 400m, braking period more than 5min).
Variable frequency adjustable speed system introduction
The whole system consists of PLC, frequency inverter, energy feedback system, electric motor, reduction box, AC input reactor, transformer, operation hand shank etc., to control the start, stop, up going, down going, brake and every kinds of protection of the elevator. The elevator will work at the condition of high-efficiency, safe and stable, meanwhile, the regenerated energy while the elevator going down will be fed back to the power grid to save energy.
Advantage of the inverter solution
(1) High-efficiency, the running speed is as high as 60～70m/min which is double of traditional elevator(34 m/min);
(2) Energy feeds back to power grid, save considerable energy for customer, good braking effect;
(3) High output torque in low speed;
(4) Reduce the driving concussion of mechanism system effectively, prolong the working life of gear, contact roller, bearing and gear rack; The current limitation function of frequency inverter reduces the surge current while starting the motor, and also reduce the interference among the power consumption devices;
(5) The system has perfect safety protect functions such as under voltage, over voltage, over torque, over current and so on; it enhances the reliability and safety for the total system.
(6) The system adopts low-speed braking method, the small rotary friction force prolongs the working life of brake effectively.
(7) Compare with traditional non speed adjustable elevator, the comfortable feeling during operation is wonderful.
JF’s products: We are supplying all kinds of the elevator parts for Maintenance Project such as Escalator PCB, Escalator Brake, Escalator Step, Travelator Pallet, Escalator Comb Plate, Escalator Step Demarcation, Escalator Rubber Handrail, Escalator Step Chain, Escalator Newel Chain, Escalator Drive Chain, Escalator Tension Chain, Escalator Step Chain Roller,Escalator Handrail Roller, Escalator Friction Wheel, Escalator Sprocket, Escalator Handrail Inlet, Escalator Drive Belt, Escalator Traffic Lights, Escalator Comb Lighting, Escalator Switch, Escalator Skirt Brush, Escalator Skirt Lighting, Escalator Guide Rail, Escalator Drive Shaft, Escalator Relay, Escalator Contactor, Escalator Transformer, Escalator Traction Machine, Escalator Inverter, Escalator Tension Carriage etc.
1,We have 25 Years of experience in elevator and escalator spare parts field.
2,We cooperation with lots of enginners from famous elevator companies so we can supply strong technology supports.
Perfect Quality Control
1,When the goods arrive at our warehouse, our engineers will check the condition of the goods before they are put into the warehouse.
2,Our engineers will check every goods again before the order is shipped!
3,We always insist on ensuring that our customers' goods are original and accurate, so that our customers will not have any additional costs for each order.
Good After-Sales Service
1,We supply customer goods quality guarantee. We provide super-value after-sales guarantee, and we provide repair and replacement services for product quality problems.
2,We provide 2 years warranty service for many products (for example: Step Chain, Rollers, Steps etc..)
1,We have over 16000kinds elevator and escalator parts in Stock
2,We have stock for most elevator parts and we can delivery goods in 2 days after your payment arrived
1,Huge purchase volume help us get the very nice price from other factories.
2,We can apply discount for your details requirements and quantity based on same quality products.
3,We accept price comparison, if you have a lower price to us, we can apply for a more favorable discount price for you immediately
4,We supply OEM service and give you more lower cost solution.
Choice JIEFENG meanings the best service.
